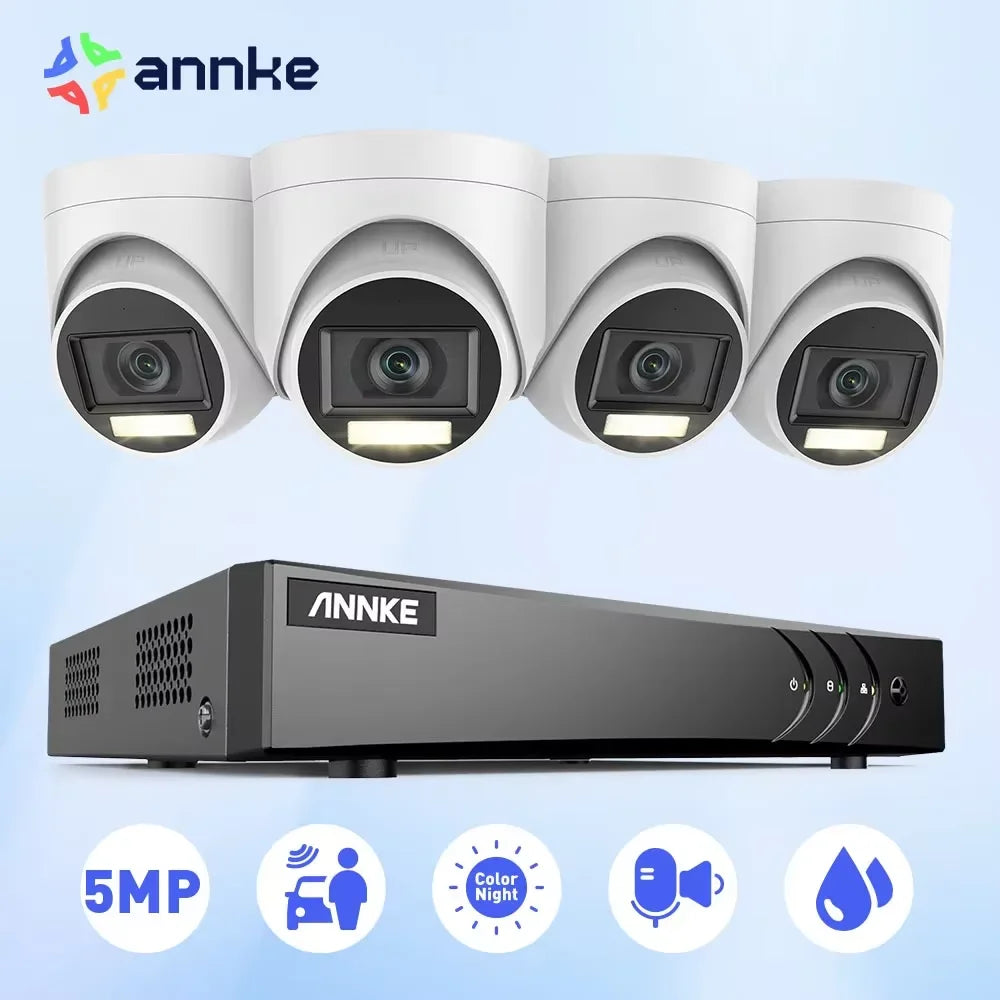

ANNKE 8CH 5MP Lite Video Surveillance System 5IN1 H.265+ DVR With 4X 5MP PIR Detection Dome Waterproof Security Cameras CCTV Kit

$552.99 USD

~~$0.00 USD~~ $552.99 USD

Sale Sold out

Shipping calculated at checkout.

Build-in HDD 3T（户外运动） None 500g

Ships From United States

SPECIFICATIONS

Analog HD Playback Resolution: 5MP Lite/3MP/1080P/720P/VGA/WD1/4CIF/CIF@12fps

Brand Name: ANNKE

Cable Length: 20m

Camera lens: 2.8mm lens

Certification: CE,FCC

Feature 1: CCTV Camera System

Feature 10: video surveillance system

Feature 2: Home Video Surveillance Kit

Feature 3: Security Camera System

Feature 4: CCTV Video Surveillance

Feature 5: annke 5mp

Feature 6: kit video surveillance

Feature 7: surveillance camera system

Feature 8: camera system

Feature 9: camera surveillance

High-concerned chemical: None

Housing: Plastic

IPC Recording/Playback Resolution: Up to 6MP

IR CUT: IR CUT Day and Night

Image Sensor: 5MP CMOS Image Sensor

Infra-Red LEDs: 1PCS

Max Playback Channel: 8-CH

Model Number: DW81KD0-V5-CR1CW-E500

Night Vision: Up to 100ft/30m

PCS of Camera: 4PCS

Resolution: 5 MP

Smart home platform: Other

Video Input: 8CH Analog HD/Analog+2CH IP

Video Output: HDMI and VGA up to 1080P

Video Resolution: 2560(H)*1944(V)

Weatherproof: IP67

Wide Dynamic Range: Digital WDR

Note:Send 500g to 1TB hard drive,Send 3T to 4TB hard drive

*High quality imaging with 3K, 2960 × 1665 resolution

*2.8 mm fixed focal lens@F1.2

*High quality audio with audio over coaxial cable, built-in mic

*Up to 30m IR distance for bright night imaging

*Up to 20 m white light distance for bright night imaging

*One port for four switchable signals (TVI/AHD/CVI/CVBS）

*Water and dust resistant (IP67)

· 5MP high definition live viewing

· 5MP Lite recording & playback

· Advanced H.265+ Video Compression

· Human and Vehicle detection， Deeping learning technology

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1

· Supports iPhone、iPad、Android mobile remote monitoring

DVR
Video & Audio	Video Compression	H.264+/H.264/H.265/H.265+
	Video Input	8CH Analog HD/Analog + 2CH IP camera
	Video Output	HDMI and VGA up to 1080p
	Audio Input/Output	1/1 RCA
	Supported Camera Types	Support HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps; Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVBS Input
	Analog HD Playback Resolution	5MP Lite/@12fps, 4MP Lite/1080p/720p/@15 fps, VGA/WD1/4CIF/CIF@25 (30) fps
	IPC Recording Resolution	Up to 6MP
	IPC Playback Resolution	Up to 6MP
	Max. Playback Channel	2-CH
	Deep learning	Human and Vehicle detection
	ONVIF Protocols	Support
Hard Drive	HDD	1 SATA Interface
Hard Drive	HDD Capacity	Up to 6 TB Capacity
External Interface	Network interface	RJ45 X1(10/100 M)
	BNC Output	－
	Alarm Input/Output	－
	RS485	－
	USB	USB 2.0 X2
General	Operating Power	DC 12 V
	Working Temperature	-14 °F – 131 °F/-10 °C – 55 °C
	Dimensions (W X H X D)	260 X 222 X 45 mm
	Weight (Without Hard Disk)	≤1 kg (2.2 lbs.) (Without HDD)

Model Number		CR1BN
HD Camera
Camera	Image Sensor	5MP CMOS Image Sensor
	Video Resolution	2560 (H) X 1944 (V)
	Signal System	PAL/NTSC
	Frame Rate	PAL: 5MP@20 fps, 4MP@25 fps, 1080p@25 fps NTSC: 5MP@20 fps, 4MP@30 fps, 1080p@30 fps
	Lens	2.8 mm
	Min. Illumination	Color: 0.01 Lux@(F1.2, AGC On), 0 Lux with IR
	Angle of View	85.5°
	Number of Infrared LEDs	1
	PIR Detection	Support
	Visual Alarm	White Light
	OSD Menu	Yes
	Night Vision Distance	Up to 100 ft/30 m
	DNR	Support
	Wide Dynamic Range	Digital WDR
	IR-Cut Filter	Yes
	Video Output	HD BNC X1
General	Material	Plastic
	Color	White
	Operating Power	DC 12 V
	Operating Temperature	-40 °F – 140 °F/-40 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L X W X H)	Φ4.32” X 3.53”/Φ109.8 X 89.75 mm
	Weight	0.53 lb./242 g
